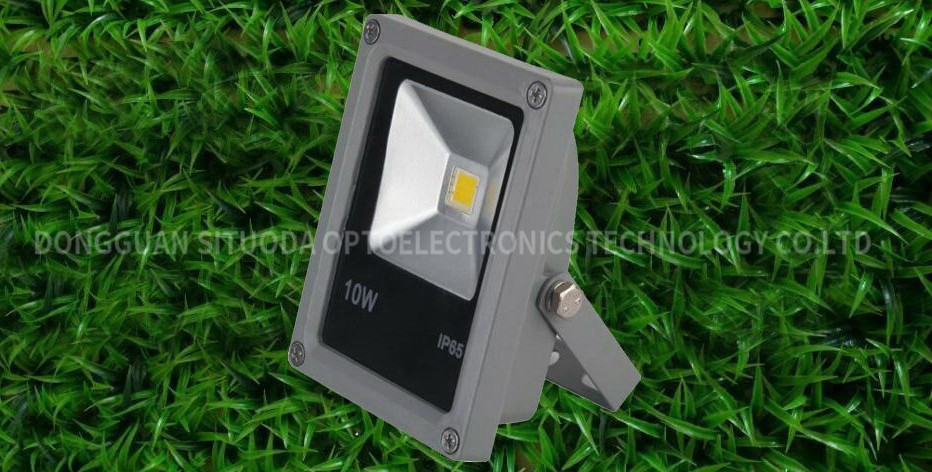

Product main product description:

Product model: STD-TG-10W-C-09

Rated power (W): 10W

Input voltage: AC85-265V

Service life (H): 50000H

Luminous Flux (LM): 850-1050LM

Color temperature (K): 2700-6500K

Color rendering index (RA): >75

Light source particle 1*10W, anti-lumen package

Protection level: IP65

Housing material: die-cast aluminum + tempered glass

Lamp size: 112*85*35mm

Packing quantity: N/A

Outer box size: N/A



product description:

1. The main structural components of the lamp body adopt a new type of aluminum lamp body, and the surface is electrostatically sprayed, which has the advantages of impact resistance and corrosion resistance.

2. Lamp profile: The main body is made of high-strength tempered glass material, which is processed by special process and is not easy to be deformed.

It has better light-emitting properties and UV resistance.

3, flood light effect: the light source uses high-grade high-power LED light source, LED combination optical arrangement, better light mixing effect

4. Safety: The design is strictly in accordance with the SAA UL standard.

5. Environmentally friendly, safe, non-polluting and RoHS compliant.



Scope of application:

Outdoor lighting, architectural decorative lighting, billboards, sports centers, factory buildings, fill light, ports, docks, squares, public

Parks, shops, subway stations, gas stations, green lighting and other places.


installation steps:

1. There are mounting holes on the base of the lamp.

2. Lift the base to the installation position.

3. Place the pen or other tool on the wall to make the screw hole.

4. Drilling.

5, install the base, stabilize the screws and so on.

6. Adjust the screws on the retaining clips to adjust the illuminator to the proper angle of illumination.

7. There are three power cables at the bottom of the lamp. AC POWER INPUT is the AC mains input terminal and is connected to the AC grid. This line is a 3-core line; the blue line is a zero line N, the brown-red line is a fire line L, and the yellow/yellow-green line is a ground line PE.


Precautions:

1. The lamp is designed to be waterproof and moisture-proof, and its protection level can reach IP65. It can withstand the test of rain from top to bottom but can not be submerged under water, and its protection level does not meet the requirements of underwater work.

2. The position where the luminaire is installed must have sufficient capacity to withstand 10 times the weight of the drive.

3. The working power supply of the luminaire is high-voltage alternating current. It should be away from the places that people can easily reach, and the grounding treatment of the luminaire should be done.

4. The luminaire is a power type device and is very sensitive to the ambient temperature. When the working environment temperature is higher than 45 °C, its life will be significantly reduced, accompanied by surface signs with severe light decay. Therefore, the luminaire should be placed in a ventilated and ventilated place to keep the lamp in a relatively good thermal environment.

5. The working environment temperature of the luminaire should be between -25 °C and +45 °C. The temperature in the workplace must not exceed 45 ° C to ensure the lighting

Service life.

6. Since the power of the lamp is relatively large, the power cable should be selected according to the actual power when laying the power cable. And phased power supply.
